Vacuum Drying Oven

Vacuum Drying Oven – RT+10℃ ~200℃ Catalogue

Vacuum Drying Oven – DLVO502 offers a 51 L chamber for handling larger sample batches in laboratory drying workflows for routine drying requirements. Its 20 kg load capacity per shelf allows placement of heavier...

Category Vacuum Drying Oven Model DLVO502 Format Product Catalogue

01

Catalogue Desk

Product support and commercial contact.

Use these details for quotations, technical enquiries, and catalogue follow-up.

Address

461 Granite Peak Dr, Casper, WY 82609

Phone

+1 (581) 893-7262

Email

info@labdel.com

Website

www.labdel.com

02

Product Overview

Vacuum Drying Oven – RT+10℃ ~200℃

Overview

Vacuum Drying Oven – DLVO502 offers a 51 L chamber for handling larger sample batches in laboratory drying workflows for routine drying requirements. Its 20 kg load capacity per shelf allows placement of heavier sample loads across multiple shelf levels, and the RT + 10°C to 200°C range supports drying at temperatures required for different materials. The 99 Pa maximum vacuum level supports moisture removal under reduced pressure, and the 304 stainless steel interior provides a durable surface for repeated laboratory use. Typical Uses: Supports larger-batch laboratory vacuum drying, moisture removal, heat-sensitive material drying, and sample preparation requiring reduced-pressure conditions.

03

Product Views

Visual reference gallery.

Additional product media from the uploaded catalogue gallery.

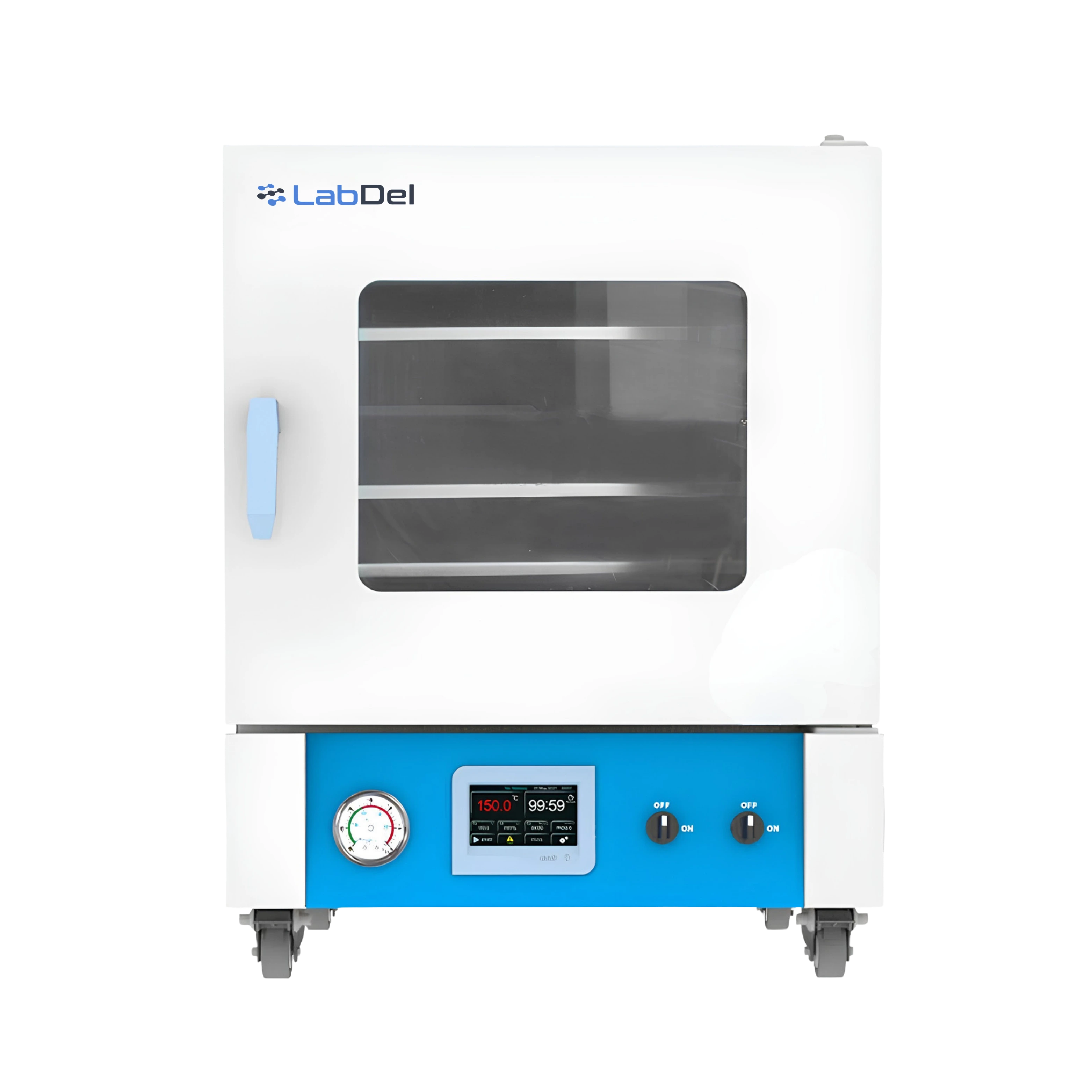

Vacuum Drying Oven – RT+10℃ ~200℃

04

Technical Data

Available specifications.

Structured technical details from this product catalogue.

Capacity

51 L

Temperature Range

RT + 10°C to 200°C

Temperature Accuracy

±1°C

Maximum Vacuum Level

99 Pa

Standard Max Number of Shelves

2 (7)

Maximum Load per Shelf

20 kg

Interior Material

304 Stainless Steel

Inert Gas Air Inlet

Standard

Display Resolution

0.1°C

Display Type

Touchscreen

Data Interface

USB

Interior Dimensions (W × D × H)

415 × 370 × 345 mm

Exterior Dimensions (W × D × H)

580 × 594 × 670 mm

Power Supply

AC 220 V, 50 Hz

Power Consumption

1400 W

Net Weight

95 kg

05

Features & Applications

Product details and applications.

Additional product information from configured content fields.

Key Capabilities

• Supports reservation and timing functions for scheduled drying operation.
• Provides multi-language menu options with °C/°F temperature conversion.
• Uses an adjustable door with a molded silicone seal for maintaining chamber vacuum.
• Provides secondary temperature-limiting protection with audible and visual alarms.
• Includes over-current, over-temperature, and overload protection for key components.
• Provides temperature alarms and heater cutoff to help protect samples.
• Displays fault messages for easier identification of instrument issues.

Optional Accessories

• Vacuum Pump
