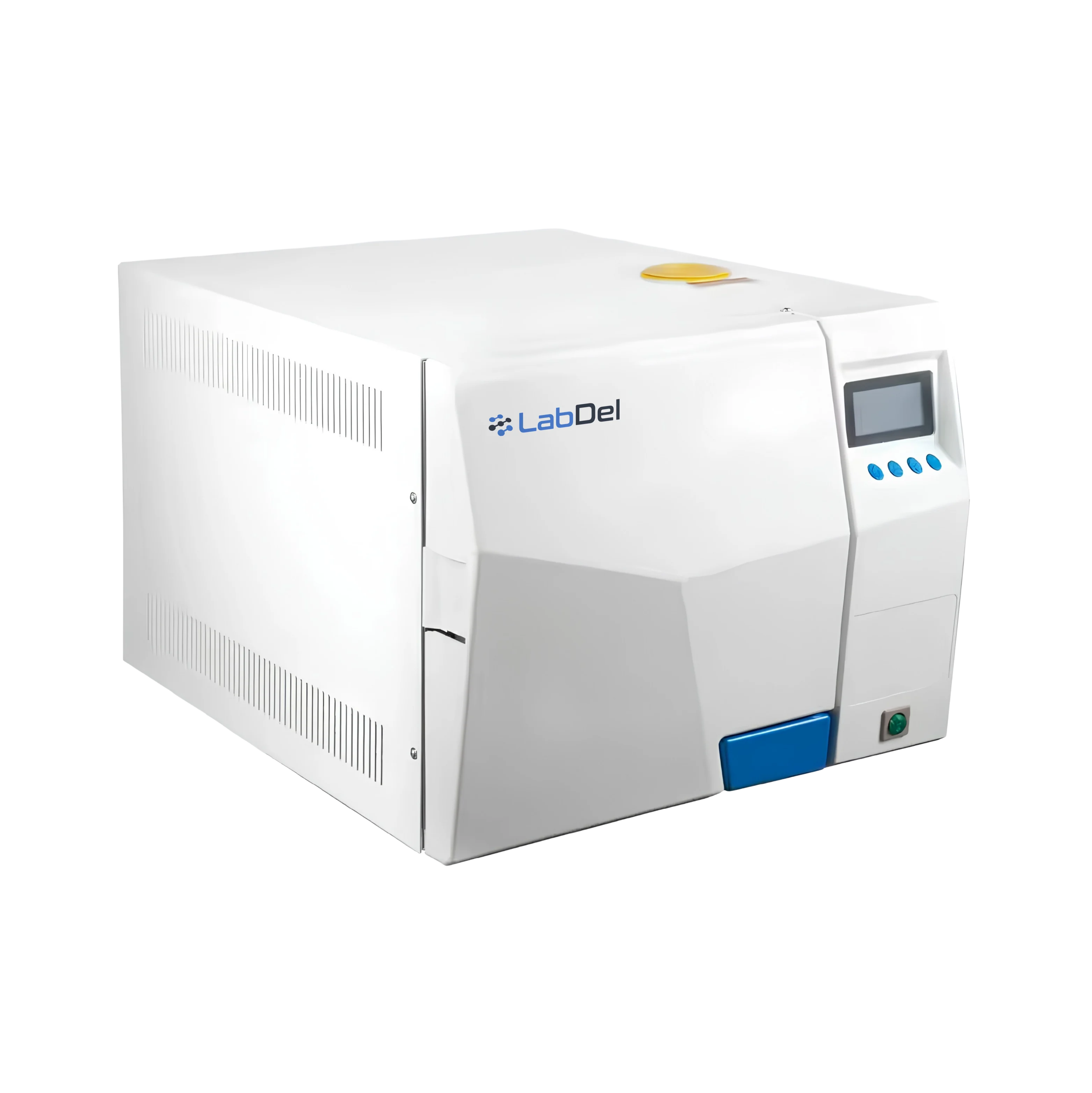

Class B Autoclave – 20 L

IN STOCK

SKU : DLCA501

Quick Overview

Class B Autoclave – DLCA501 supports steam sterilization of packaged, solid, hollow, and multi-aperture laboratory instruments. Its 20 L chamber provides space for multiple instruments in each load, and the 134°C working temperature supports controlled steam sterilization of compatible materials. Three vacuum and drying cycles help remove air and moisture from packaged and hollow instruments, supporting repeatable processing before instruments are stored or reused. Read More

Key Features

Class B Autoclave Sterilizer

Class B Steam Sterilizer

Desktop Steam Sterilizer

Desktop Class B Autoclave

Class B Autoclave Manufacturer

Get Quote

Download Catalog

Technical Data

Capacity	20 L
Chamber Size	Φ250 × 360 mm
Working Pressure	0.22 MPa
Working Temperature	134°C
Temperature Adjustment Range	105–134°C
Timer Range	0–99 min
Heat Average	≤±1°C
Power	2 kW
Power Supply	220 V, 50 Hz
Dimension (W × D × H)	560 × 470 × 400 mm
Packaging Dimensions	655 × 560 × 495 mm
Gross Weight	52 kg
Net Weight	47 kg

Key Capabilities

• Three vacuum and drying cycles remove air and moisture from instrument loads.
• Fully computer-controlled LCD display with touch keys shows operating status and supports cycle monitoring.
• Vacuum capability up to −0.8 bar supports air removal from different instrument types.
• Built-in steam generator supplies steam for sterilization cycles.
• Built-in mini printer records sterilization information for process documentation.
• Bowie-Dick test supports assessment of steam penetration.
• Safety valve, door lock, pressure lock, overload protection, and alarm provide safety during sterilization cycles.
