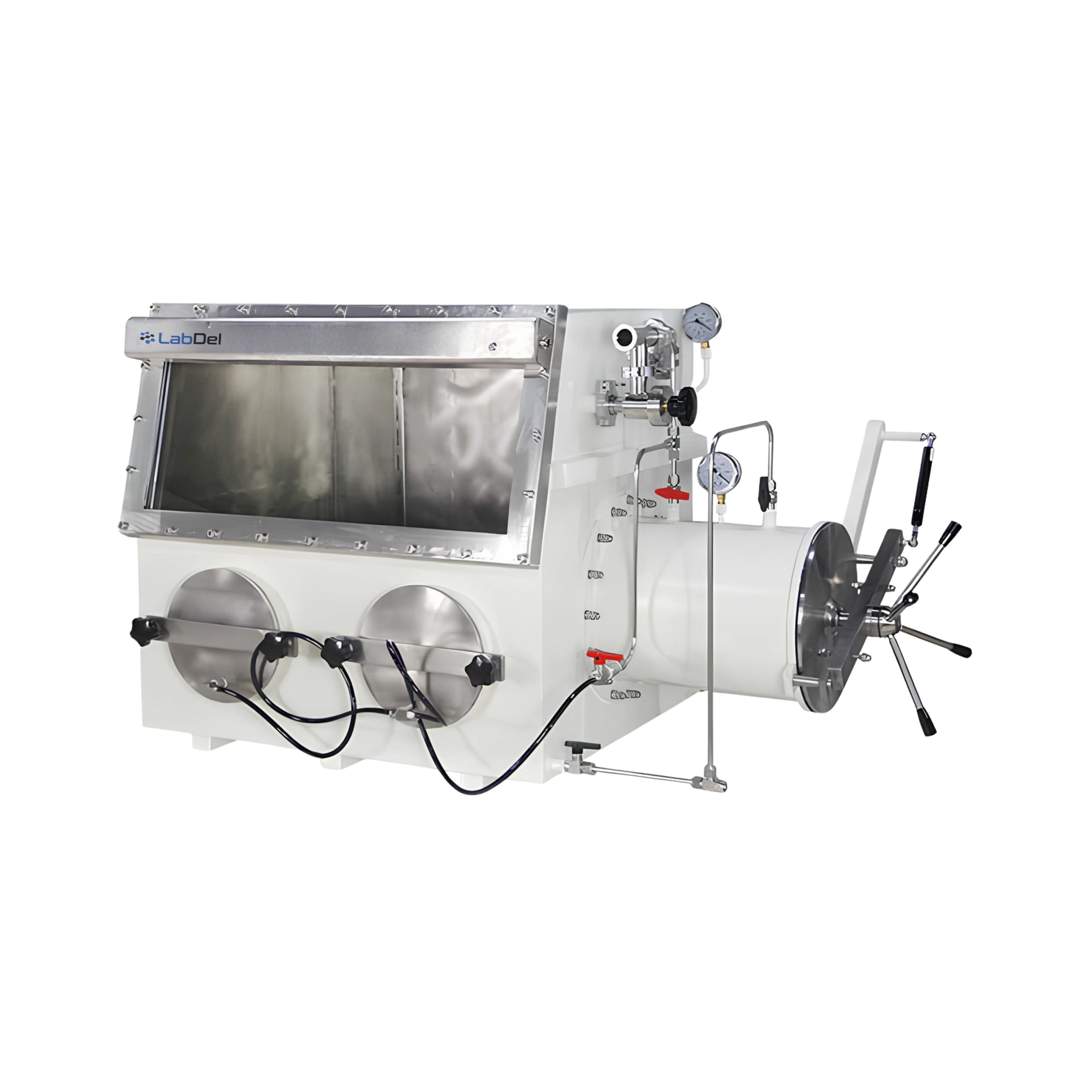

Stainless Steel Glove Box – DLSG501 provides an isolated workspace for air-sensitive sample handling with argon, helium, or nitrogen at 99.99% purity. Its 1200 × 700 × 900 mm main chamber accommodates multiple sample setups during laboratory procedures. The Φ340 × 400 mm and Φ120 × 160 mm transfer boxes, each reaching −0.1 MPa vacuum, support material transfer without breaking the sealed atmosphere. A Φ200 mm glove port enables direct sample manipulation within the isolated workspace. Read More
| Main Chamber Dimensions (L × D × H) | 1200 × 700 × 900 mm |
|---|---|
| Transfer Box Size | Φ340 × 400 mm |
| Small Transfer Box Size | Φ120 × 160 mm |
| Rack | 2 Layers |
| Glove Port Diameter | Φ200 mm |
| Window Size | 110 × 38 mm |
| Left Side Door Size | 400 × 400 mm |
| Vacuum Degree | −0.1 MPa |
| Vacuum of Transfer Box | −0.1 MPa |
| Lamp | External Control Lamp: 1 pc |
| Valve Configuration | Import Valve: 2 pcs; Export Valve: 2 pcs |
| Gas Compatibility | Argon, Helium, and Nitrogen Gas (Purity 99.99%) |
| Power Supply | 10 A, 220 V |
| Weight | 312 kg |
• Dual Transfer Main and small transfer chambers support controlled sample transfer for materials of different sizes.
• Vacuum Control −0.1 MPa vacuum supports controlled-atmosphere sample handling.
• Glove Port Φ200 mm glove port allows direct hand access to the enclosed workspace.
• 2-Layer Rack Provides organized placement of samples and materials inside the chamber.
• Viewing Window Provides visibility into the workspace during operation.
• External Control Lamp Provides illumination for clear observation inside the chamber.
• Left-Side Door 400 × 400 mm door provides additional access to the workspace.
• Trachea
• LED Lights
• Gloves
• Shelf Rack
• Valves
• Additional Valves
• Aviation Plug
• USB Interface
• Other Accessories
