Magnetic Stirrer

Magnetic Stirrer – Ceramic Platform, 15 L Catalogue

Magnetic Stirrer – DLMS502 combines magnetic stirring with a heated ceramic platform for liquid mixing and solution preparation. Its 15 L maximum mixing capacity supports solution preparation in laboratory containers, and the 180 ×...

Category Magnetic Stirrer Model DLMS502 Format Product Catalogue

Magnetic Stirrer – Ceramic Platform, 15 L

01

Catalogue Desk

Product support and commercial contact.

Use these details for quotations, technical enquiries, and catalogue follow-up.

Address

461 Granite Peak Dr, Casper, WY 82609

Phone

+1 (581) 893-7262

Email

info@labdel.com

Website

www.labdel.com

02

Product Overview

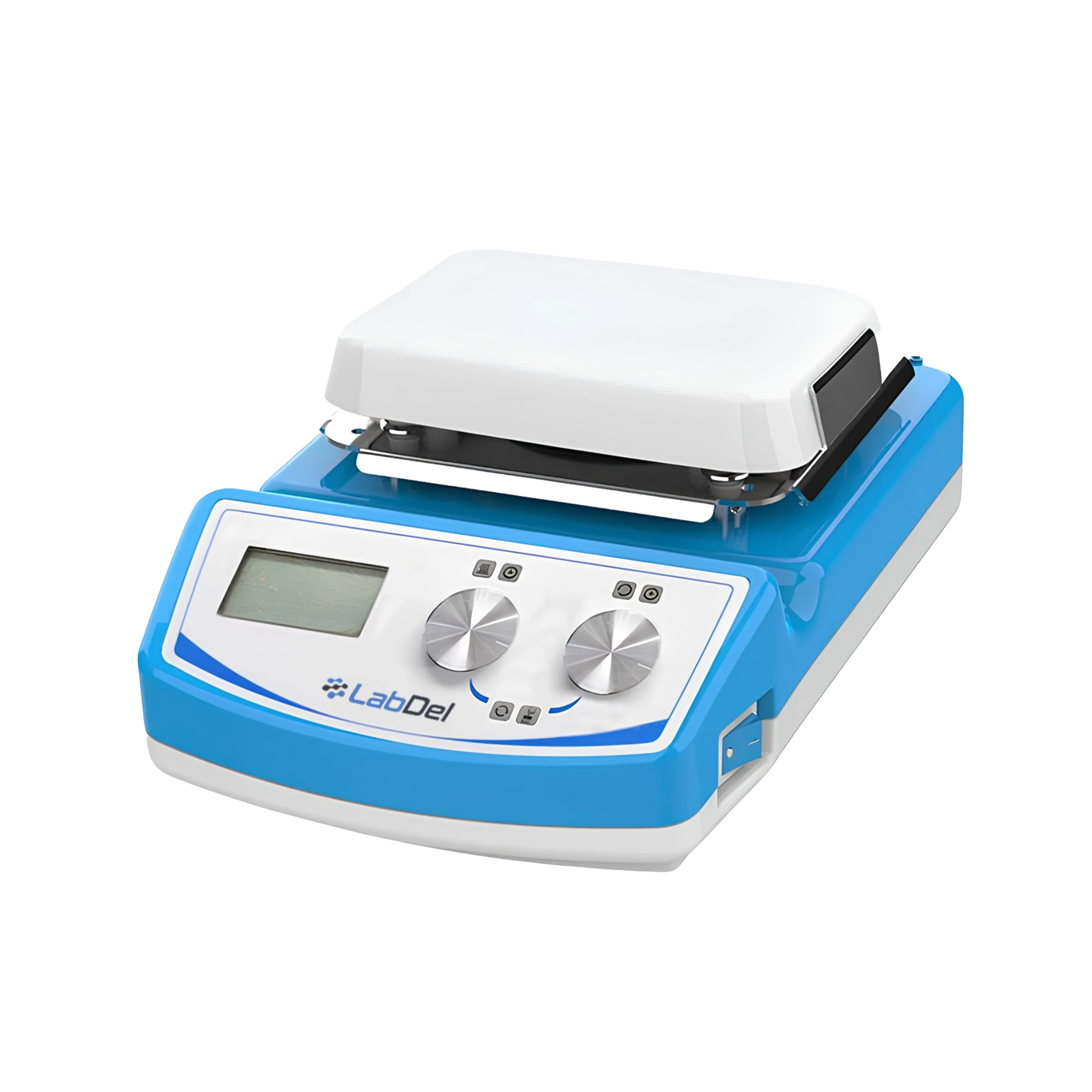

Magnetic Stirrer – Ceramic Platform, 15 L

Overview

Magnetic Stirrer – DLMS502 combines magnetic stirring with a heated ceramic platform for liquid mixing and solution preparation. Its 15 L maximum mixing capacity supports solution preparation in laboratory containers, and the 180 × 180 mm ceramic platform provides a stable surface for container placement during heated stirring. The 200–1600 rpm speed range supports controlled stirring, and the brushless DC motor maintains stirring speed under changing liquid viscosity. Typical Uses: Supports solution preparation, sample mixing, heated stirring, and controlled liquid mixing with a magnetic stirrer in routine laboratory workflows.

03

Product Views

Visual reference gallery.

Additional product media from the uploaded catalogue gallery.

Magnetic Stirrer – Ceramic Platform, 15 L

04

Technical Data

Available specifications.

Structured technical details from this product catalogue.

Max. Mixing Capacity

15 L

Speed Range

200–1600 rpm (2000 rpm optional)

Platform Material

Ceramic

Platform Size

180 × 180 mm

Platform Control Temperature

RT+5–320°C

Maximum Platform Temperature

Up to 400°C

Heating Power

950W

Input Power

1000W

Temperature Deviation Protection

Stops heating when measured temperature exceeds the set temperature by a specified value of 0–30°C

Extreme Over-Temperature Protection

Stops heating when the platform temperature exceeds the set temperature

Anti-Hot Warning Light

Flashes when platform temperature exceeds 55°C

Motor Type

Brushless DC Motor

Display

LCD Screen

Overall Dimensions (W × D × H)

210 × 330 × 130 mm

Net Weight

4.5 kg

05

Features & Applications

Product details and applications.

Additional product information from configured content fields.

Key Capabilities

• LCD screen displays temperature, rotation speed, and countdown timer parameters on one interface.
• Microcomputer control maintains stirring speed under changing sample viscosity.
• One-piece ceramic platform provides corrosion resistance and a smooth surface for cleaning.
• High output torque supports mixing liquids with different viscosities and sample volumes.
• Brushless DC motor provides stable stirring operation and speed control.

Optional Accessories

• Anti-Hot Cover

06
